PRODUCTS

Fish feeds making production line

Quick detail:

1,Capacity:100kg/h-5ton/h

2,Certification:CE,SGS,ISO ect.

3,After-sales service:Engineer on-site service

4,Warranty:1 year

5,Brand: motor Siemens, inverter Delta

Machine introduction
Machine details
Our advantage

Fish feeds machine description:

Twin screw fish feed extruder, also called floating fish feed machine, is widely used for produce high-grade aquatic feed pellets for fish, catfish, shrimp, crab, lobsters, etc.

We have two types of fish feed extruder, dry type and wet type model fish feed machine, through feeding materials, extruding,Forming,Filling and cutting, drying, oil spraying, packing to produce floating and sinking fish feed pellets automatically,Moreover, you can change extrusion degree to influence floating time.

This production line can greatly improve the production efficiency and quality of fish feed, promote the growth of fish, and is the best choice for fish farm breeding.

Fish feeds making production line :

Dry model:

Wet Model :

Processing line video link :

Final products :

Raw Materials:

Most fish feed pellet inculding animal protein and plant protein, Plant protein adopts corn flour,rice flour,wheat flour,soybean flour,peanut cake powder…..Animal protein adopts fish meal, shrimp meal,crab meal, sleeve-fish meal and so on….you can add other ingredient according to the local fish live require.

It can also add high fat and protein raw materials, For example, fresh fish, bone, high protein content and high fat raw materials, etc.

Features of fish feed machine line:

1.Fish food made by this pellet extruder is of puffing type, more easily to digest for fishes, and our company provides various feed formulas to meet the nutritional needs of different fish and different stages of fish.

2.The fish feed pellet size can be from 0.9-10mm to feed different sizes of fishes, and are able to float on the water surface without dissolution for over 12 hours.

3.High temperature and high pressure process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.

5.Not only for making fish feed pellets, but also suitable for making feed pellets for dog, cat, bird.

6. The twin-screw equipment has self-cleaning function and can be self-cleaning without disassembly,Reduce labor intensity.

7. The forced lubrication system ensures the smooth operation and long service life of the machine.

8.Simple structure in linear type ,easy in installation, maintation, cover small area. Running in a high autmatization and intellectualization,no pollution

9. All fish food equipments are made of stainless steel, ensure the clean and sanitary feed

10. Packing machine could be supplied to work with the fish feed production line (depending on your require).

11.Higher and lower configuration for various demands ,the whole production process needs 1-3 people to operate, saving labor cost and reducing labor intensity.

Extruder model:

（The table can be dragged left and right to view）

Model	Installed Power	Power Consumption	Output	Size
DSE - 65	74 kw	52 kw	140-160 kg/hr	17x1.3x2.2(m)
DSE - 70/75	105 kw	75 kw	240-260 kg/hr250-350 kg/hr	20x1.5x2.2(m)
DSE - 85	205kw	150kw	500-600kg/hr	30x1.5x2.6(m)
DSE - 90	132kw	75kw	800-1200kg/hr	35x2.5x3.8(m)
DSE - 95	165kw	90kw	1500-2000kg/hr	40x3.5x4.5(m)
DSE - 130	280kw	132kw	3000-3500kg/hr	45x4.5x6.0(m)

Flow chart:

Milling Machine—Mixer—Conveyer—Extruder—Conveye—Dryer—Conveyer—Flavoring machine—Cooling Machine—lifter—Packing Machine

Main equipment introduction

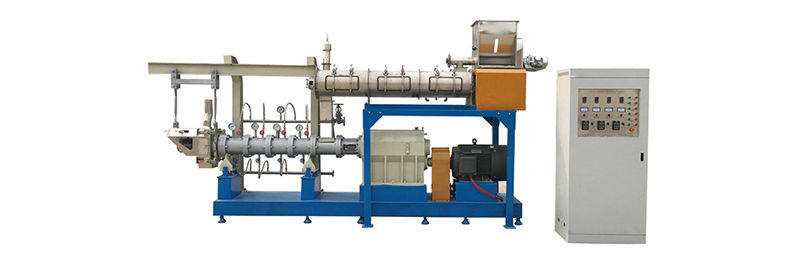

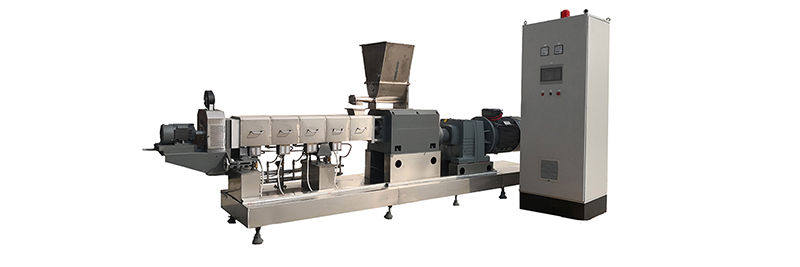

Extruder：

（The table can be dragged left and right to view）


Name	Twin Screw Extruder machine
Power	22kw,30kw,75kw,110kw,160kw etc.
capacity	150kg/h,250kg/h,500kg/h,1T/h,2T/h,3T/h,4T/h,5T/h...
Use	By puff and extruding process toMake the materials mature and to be fish feeds pellets
Advantage:	(Dry type) 1.304 stainless steel food touch and protect plate, more durable, stable. 2.Equipped with heating and cooling system to precisely control the expansion temperature and improve product quality 3.Three separate inverter for main motor,cutting motor and feeding motor, to control the motor speed easily. 4.twin screw extruder, more powerful and high extrusion degree. 5.screws can be complete type or combined type, to meet different production requirement. 6.The forced lubrication system can make the working life longer 7. Self-cleaning, when stopping, it can be cleaned without disassembling 8. Adopting advanced world famous brand components(Siemens / Omron / Samsung/Schneider, etc) in electric parts and operation parts.
Advantage:	(Wet type) 1.Boiler Continuously offer hot steam into the preconditioner, so materials can be fully cooked and the nutritional value is improved,thus the quality and qantity of pellets can be improved greatly with lower power consumption. 2.High temperature and high pressure process can kill salmonellosis and bacterial infections and also makes the pellets easily to digest. 3.Key parts are processed through vacuum quench treatment with high processing precision .thus have a long service life. 4.Screw sleeve adopts jacketed construction. Which can be injected in with hot sream or cooling water.thus the extruding temperature can be controlled effectively. 5 .Suitable for the production of high protein and high fat fish feed products.

Dryer


Name	Dryer
type	electrical, steam, gas fired, diesel fired heating type etc.
Model	KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-5, KX-7-8, KX-7-10….
capacity	100-10000kg/h
Use	By heating power to make the fish feed pellets dry efficiently
Advantage:	1.Gas dryer， Fuel and gas are used as heat source,Low electricity consuming and high heating efficiency 2.Electric dryer,Low cost, environmental protection, high drying efficiency. 3. Effectively solve the bulking fish feed pellet drying problems, particles reach the ideal water resistance, improve grain appearance quality, Extended shelf life. 4. Material contact surface is stainless steel, safe and reliable 5.internal circulating hot air system, low energy consumption , high quality 6. Adopt hot air circulation bi-direction cross flow method, equipped with moisture removing fan, the wind direction forcibly penetrate and materials from top to bottom and the hot air discharges the materials moisture. 7. The belt and the heat preservation use the stainless steel; it is suitable for feed industry. 8.The running speed of belt net can be controlled (frequency)

Flavoring machine:


Name	Flavoring machine
Type	Single and double flavoring drum
Power	0.75kw,1.1kw, 4kw...
capacity	100-10000kg/h
Use	To mix the oil and flavors powder on the surface of the fish feeds, to make different tastes
Advantage	1. The inside turning container is very sanitary because of adopting the stainless steel material. The small roller is used for the small output whereas the big roller is used for the plentiful output. 2. we can spray the oil and sprinkle flavoring material in this roller,we can flavoring products automatically.this roller is easy to operate it.and easy to clean it after day work. 3. The roller is 100% 304 stainless steel material .
